E. & K. TASSIS O.E.



SPECIFICATION OF MANUFACTURE		E. & K. TASSIS CO Certification and marking CE



DRAWING OF MANUFACTURE		E. & K. TASSIS CO 03101-1




TECHNICAL CHARACTERISTICS

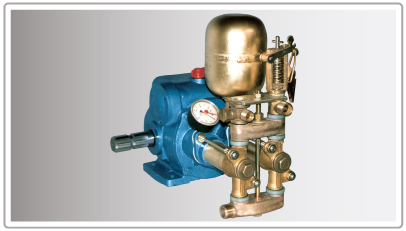

TYPE		BUKMAN 200



REQUIRED MOTOR POWER FOR SPRAYER WITH TWO PISTONS		3,5 HP



REQUIRED ENGINE POWER FOR SPRAYER WITH TWO PISTONS		3 HP



MAXIMUM NUMBER OF ROTATIONS FOR SPRAYER WITH SHAFT P.T.O		270 / 1'



VOLUME FOR SPRAYER WITH TWO PISTONS		19 LIT/MIN



WORKING PRESSURE FOR SPRAYER WITH TWO PISTONS		35 BAR
		THE BODY IS CAST IRON, THE SPARE PARTS BRASS AND THE SHAFT STEEL
