| SPECIFICATION OF MANUFACTURE |
|
PPC SA GR-272 3.2.82. |
|
|
|
|

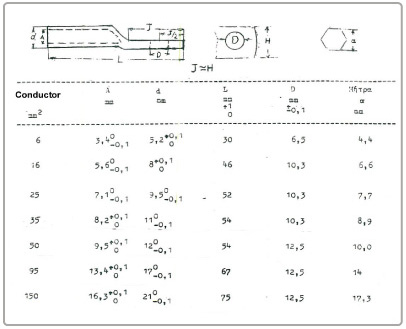

| DRAWING OF MANUFACTURE |
|
PPC SA GR-272 ÐÉÍÁÊÁÓ ÉÉ. |
|
 |
|
|
| MATERIAL OF MANUFACTURE |
|

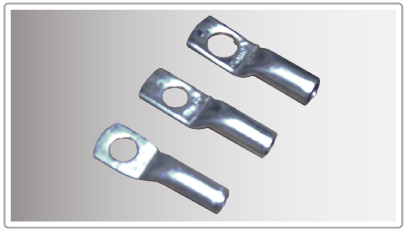

Terminals are made of electrolyte annealed copper. The terminals are tin plated with thickness of tin plating 8 ìm |
|
|
|
|
 |
|
| OFFERED TYPES |
|
|
|
|
| . |
| A/A |
PPC SA
CODE NUMBER |
CABLE CROSS-SECTION (mm2) |
A mm |
d mm |
D mm |
| 1 |
430017731 |
16
|
5,6 |
8 |
10,3 |
| 2 |
430017743 |
25 |
7,2 |
9,5 |
10,3 |
| 3 |
430017755 |
35 |
8,3 |
11 |
10,3 |
| 4 |
430017767 |
50 |
9,6 |
12 |
12,5 |
| 5 |
430017779 |
95 |
13,4 |
17 |
12,5 |
| 6 |
430017720 |
150 |
16,3 |
21 |
12,5 |
| . |
|
|
