| SPECIFICATION OF MANUFACTURE |
|
PPC SA GR-272 3.2.82. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|
PPC SA GR-272 |
|
 |
|
|
| MATERIAL OF MANUFACTURE |
|
Junctions are made of aluminium
A5 clear 95 %. |
|
|
|
|
 |
|
| OFFERED TYPES |
|
|
|

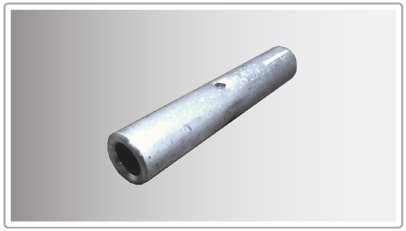

| FOR CONNECTION OF BUNDLED CABLES |
| A/A |
PPC SA CODE NUMBER |
CONDUCTOR TYPE
(mm2) |
CABLE CROSS-SECTION
(mm2) |
A mm |
d mm |
| 1 |
430017792 |
AAAC 54,6 |
54,6 |
10 |
16,2 |
| 2 |
430017822 |
AL 25 |
25 |
6,5 |
13 |
| 3 |
430017858 |
AL 70 |
70 |
11 |
20 |
| . |
|
|
|
|
|

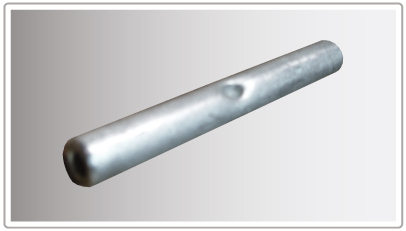

| FOR CONNECTION OF BUNDLED CABLES WITH COPPER NETWORK |
| A/A |
PPC SA CODE NUMBER |
CONDUCTOR TYPE
(mm2) |
CABLE CROSS-SECTION
(mm2) |
A mm |
d mm |
| 1 |
430017809 |
AAAC 54,6-50 Cu |
54,6-50 |
10-9,5 |
16,2 |
| 2 |
430017834 |
AL 25-16 Cu |
25-16 |
6,5-5,5 |
13 |
| 3 |
430017846 |
AL 70-50 Cu |
70-50 |
11-9,5 |
20 |
| . |
|
|
