| SPECIFICATION OF MANUFACTURE |
|
PPC SA ÔÐ 133 1.7.86. |
|
|
|
|

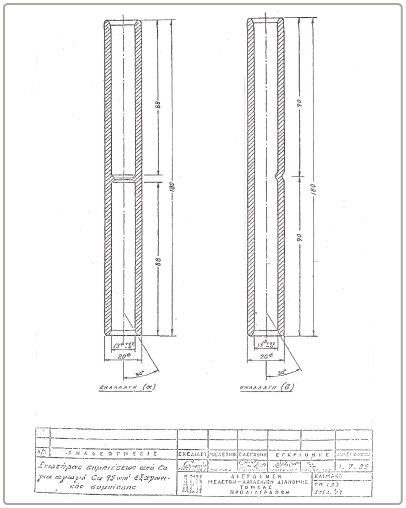

| DRAWING OF MANUFACTURE |
|
PPC SA ÔÐ 133 1.7.86. |
|
 |
|
|
| MATERIAL OF MANUFACTURE |
|

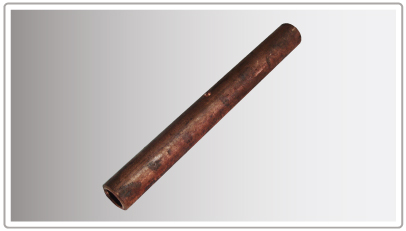

Joints are made of electrolyte copper. |
|
|
|
| PPC SA CODE NUMBER |
|
430018814 |
|
|
|
|
 |
|
| OFFERED TYPES |
|
|
|
| FOR CONNECTION OF BUNDLED CABLES |
| A/A |
CONDUCTOR TYPE
(mm2) |
CONDUCTOR CROSS-SECTION
(mm2) |
INTERNAL DIAMETER
mm |
EXTERNAL DIAMETER
mm |
LENGTH
mm |
| 1 |
Cu 95 |
95 |
13 |
20 |
180 |
| . |
|
|
