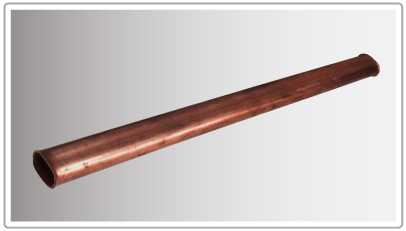

| COPPER
TWISTING JOINTS |
 |
 |
| |
|
|
|
| SPECIFICATION OF MANUFACTURE |
|
PPC SA GR-172 21.1.65. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|
PPC SA Á-19367. |
|
 |
|
|
| MATERIAL OF MANUFACTURE |
|
Joints are made of mild annealed copper. |
|
|
|
|
 |
|
| OFFERED TYPES |
|
|
|
|
| FOR THE CONNECTION OF COPPER CONDUCTORS |
| A/A |
PPC SA CODE NUMBER |
CONDUCTOR TYPE
(mm2) |
CONDUCTOR EXTERNAL DIAMETER
(mm) |
JOINTS/
CONNECTION |
| 1 |
430011455 |
Cu-16 |
5,13 |
1 |
| 2 |
430011467 |
Cu-35 |
7,59 |
1 |
| 3 |
430011479 |
Cu-50 |
9,15 |
1 |
| 4 |
|
Cu-70 |
10,85 |
1 |
| . |
|
|
| |
|
