| SPECIFICATION OF MANUFACTURE |
|
PPC SA DKSD -287/March 2004. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|
E. & K. TASSIS CO / RIVIMETAL SA. |
|
|
|
|
| MATERIAL OF MANUFACTURE |
|

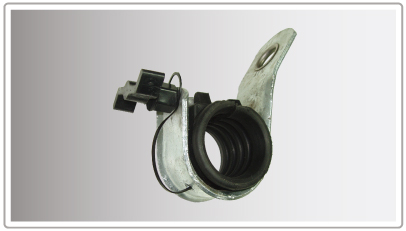

The clamp body and the tightening screw are made of steel.The hole reinforcement ring is made of stainless steel. The torque-measuring type shear-off head is made of black colour weather and UV resistant fiberglass reinforced plastic. The bundle retaining ring is made of black colour thermoplastic elastomer. |
|
|
|
|
| SURFARCE TREATMENT |
|
All steel parts are hot dip galvanised according to technical specification PPC SA ×Ê 11.02 / 10.3.88 (GR-181). |
|
|
|
|
| MECHANICAL CHARACTERISTICS |
|
Minimum strength against tensile loads along the vertical axis without any visible deformation : 1000 daN.
Minimum sliding load at the cable cores along the longitudinal direction for which there is no slippage of the cable greater than 4 mm can be observed : 50 daN. |
|
|
|
|
| ELECTRICAL CHARACTERISTICS |
|
Dielectric strength of the insulating insert : 4 kV. Dielectric strength between the metallic parts of the clamp and the cable cores : 30 kV. |
|
|
|
|
| PPC SA CODE NUMBER |
|
430021412 |
|
|
|
