| SPECIFICATION OF MANUFACTURE |
|
PPC SA ÄÌÊËÄ Íï 156/15.01.93. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|
E. & K. TASSIS CO 04101-2. |
|
|
|
|
| MATERIAL OF MANUFACTURE |
|

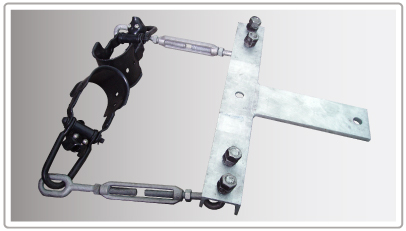

The main support and the suspension clamps and made of steel St 37-2. The turnbuckle body is made of steel C45 and the turnbuckle eye and oval eye are made of steel C15. The restrain cases are made of steel lamina.Bolts and pins are made of steel.The suspension clamps and the restrain cases are plasticised. |
|
|
|
|
| SURFARCE TREATMENT |
|
All steel parts are hot dip galvanised according to PPC SA technical specification ×Ê 11.02 / 10.3.88 (GR-181). |
|
|
|
|
| MINIMUM BREAKING TENSILE LOAD |
|
Horizontal traverse Tensile load 34000 N.
Vertical tensile load 10000 N.
Horizontal longitudinal tensile load 28000 N. |
|
|
|
