| SPECIFICATION OF MANUFACTURE |
|
PPC SA GR-47 S 4.11.1986. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|

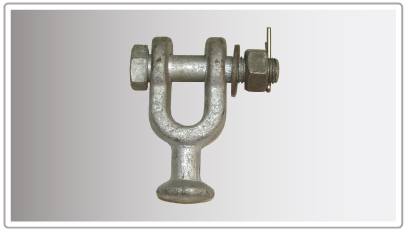

PPC SA GR-47 S 1/2. Socket according to standard IEC 120 size 16 Á. |
|
|
|
|
| PPC SA CODE NUMBER |
|
PPC SA 430017342 |
|
|
|
|
| MATERIAL OF MANUFACTURE |
|
The body is made of forged steel St 37-3. The bolt, the washer and the nut are made of steel.
Cotter pin is made of stainless steel. |
|
|
|
|
| SURFARCE TREATMENT |
|
All steel parts are hot dip galvanised according to PPC SA technical specification ×Ê 11.02 / 10.3.88 (GR-181). |
|
|
|
|
| MINIMUM BREAKING LOAD |
|
8000 Kp. |
|
|
|
