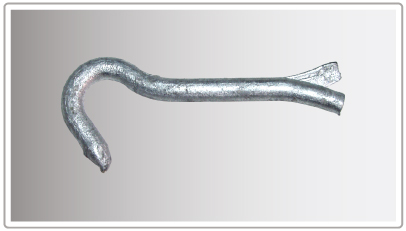

| FORGED STUD
HOOK |
 |
 |
| |
|
|
|
| SPECIFICATION OF MANUFACTURE |
|
PPC SA GR-121 17.1.86. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|
PPC SA
GR-121 1/1. |
|
|
|
|
| PPC SA CODE NUMBER |
|
430008547 |
|
|
|
|
| MATERIAL OF MANUFACTURE |
|
The body is made of forged steel St 37-2. |
|
|
|
|
| SURFARCE TREATMENT |
|
All steel parts are hot dip galvanised according to PPC SA technical specification ×Ê 11.02 / 10.3.88 (GR-181). |
|
|
|
|
| TENSILE STRENGTH |
|
180 Kg. |
|
|
|
|
| BENDING STRENGTH |
|
1400 Kg. |
|
|
|
|
| |
|
