OVERHEAD POWER TRANSMISSION LINES PRODUCTS
OVERHEAD 150 KV POWER TRANSMISSION LINE FITTINGS
INSULATOR SET FITTINGS

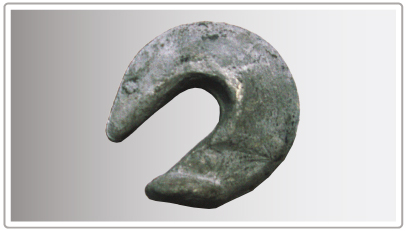

SELF LOCKING HOOK
SELF LOCKING HOOK
SPECIFICATION OF MANUFACTURE
PPC SA DNEM TR-4 Revision March 2008 Dimensions according to standard IEC 60120/84 size 16Á.
DRAWING OF MANUFACTURE
E. & K. TASSIS CO.
PRODUCT INDENTIFICATION NUMBER
TR-4/01
MATERIAL OF MANUFACTURE
The self locking hook is made of forged steel St-37-2.
SURFARCE TREATMENT
All steel parts are hot dip galvanised according to standards EN ISO 1461/99 and ASTM A143-74 (1999).
MINIMUM BREAKING LOAD
Q=100 kN.
