| SPECIFICATION OF MANUFACTURE |
|
PPC SA DNEM TR-4 Revision March 2008. |
|
|
|
|
| DRAWING OF MANUFACTURE |
|
E. & K. TASSIS CO. |
|
|
|
|
| PRODUCT INDENTIFICATION NUMBER |
|
TR-4/07. |
|
|
|
|
| MATERIAL OF MANUFACTURE |
|

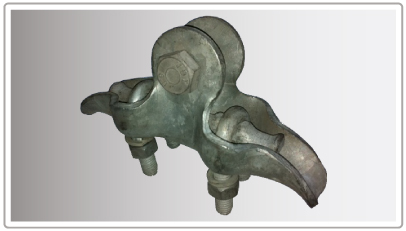

The clamp body and the saddle are made of forged steel St-37-2. The M12 U-bolts, the M16 bolt and the hexagonal M12 and M16 nuts are made of steel. The cotter pin is made of stainless steel. |
|
|
|
|
| SURFARCE TREATMENT |
|
All steel parts are hot dip galvanised according to standards EN ISO 1461/99 and ASTM A143-74 (1999). |
|
|
|
|
| MINIMUM BREAKING LOAD |
|
Q=70 kN. |
|
|
|
