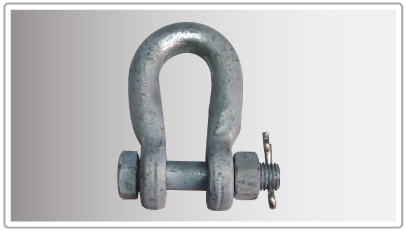

SHACKLE FOR SHIELD WIRE ASSEMBLY

SHACKLE FOR SHIELD WIRE ASSEMBLY

SPECIFICATION OF MANUFACTURE PPC SA DNEM TR-5 Revision September 2007.
DRAWING OF MANUFACTURE   ΤΑΣ-05.
PRODUCT INDENTIFICATION NUMBER   TR-5/05.
MATERIAL OF MANUFACTURE   The steel body is made of steel St-37-2. The M16 bolt and M16 nut is made of steel St 37-2.The cotter pin is made of stainless steel.
SURFARCE TREATMENT   All steel parts are hot dip galvanised according to standards EN ISO 1461/99 and ASTM A143-74 (1999).
MINIMUM BREAKING LOAD   Q=120 kN.
