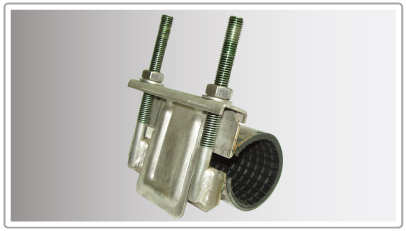

POTABLE WATER SUPPLY PIPELINE PRODUCTS POTABLE WATER SUPPLY PIPE REPAIR CLAMPS SNAP CLAMPS "FAST FIX" SERIES SNAP CLAMP WITH STUDS TYPE SC-3   SNAP CLAMP WITH STUDS TYPE SC-3       Clamp use Fast and permanent repair of damaged pipes in case of longitudal cracks and local small damages. Damage types   Pin holes, frost damage, local small damages, longitudal cracks. Pipe types   Ductile Iron, Cast Iron, Steel, Asbestos Cement (AC), PE coated steel, PVC, PE. Working pressure   16 bar.   Material Specification ** Band   One stainless steel band according to AISI 304. Lug   Stainless steel according to AISI 304. Bridge   Stainless steel according to AISI 304. Bolts   Two stainless steel AISI 304 M14 studs. Nuts   Two stainless steel AISI 304 M14 Hexagon Nuts DIN 934. Washers   Two stainless steel AISI 304 M14 washers DIN 125 A. Rubber Gasket   EPDM suitable for use in potable water. Tightening torque   9 Kg / m Studs have a coating wth special material so as galling is prevented during nuts clamping. All metal parts after welding have been subjected to pickling and passivation process for restoring corrossion resistance. Easy installation and use with the help of a simple wrench. No loose parts. AVAILABLE SIZES For pipe OD 67 mm up to pipe OD 77 mm. WORKING RANGE* 10 mm. CLAMP LENGTH * 150 mm. * OTHER CLAMP WORKING RANGES AND CLAMP LENGTHS ARE MANUFACTURED ON SPECIAL DEMAND. ** MATERIAL AISI 316 ON REQUEST.
