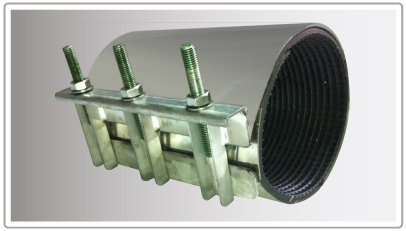

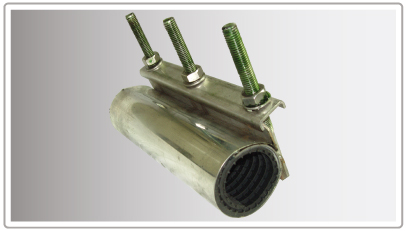

| Clamp use |
|
Fast and permanent repair of damaged and broken pipes. |
|
|
|
|
| Damage types |
|
Full circumferental damage, Pin holes, frost damage, local small damages, longitudal cracks. |
|
|
|
|
| Pipe types |
|
Ductile Iron, Cast Iron, Steel, Asbestos Cement (AC), PE coated steel, PVC, PE. |
|
|
|
|
| Working pressure |
|
16 bar for pipe ND 40 up to ND 150.
10 bar for pipe ND 175 up to ND 300.
|
|
|
|
| Key benefits of using our repair clamps |
|
 |
Top leakage sealing performance under pipe working pressure with the use of high performance closing mechanism. |
|
High quality guarantee. |
|
Top manufacturing quality. |
|
Fast, easy installation and use with the help of a simple wrench. |
|
No loose parts. |
|
Small weight. |
|
No pressure loss during installation. |
|
|
|
|
|
| |
| Material Specification * |
|
|
|
| Bands |
|
One stainless steel band according to AISI 304. |
|
|
|
|
| Lugs |
|
Stainless steel according to AISI 304. |
|
|
|
|
| U-shape liftbar |
|
Stainless steel according to AISI 304. |
|
|
|
| Sidebars |
|
Stainless steel according to AISI 304. |
|
|
|
|
| Armor |
|
Stainless steel according to AISI 304. |
|
|
|
|
| Bolts |
|
Two, three or four Stainless steel AISI 304 M14 studs. |
|
|
|
|
| Nuts |
|
Two, three or four Stainless steel AISI 304 M14 Hexagon Nuts DIN 934. |
|
|
|
| Washers |
|
Two, three or four Stainless steel AISI 304 M14 Washers DIN 125 A. |
|
|
|
| Rubber Gasket |
|
Waffle pattern EPDM suitable for use in potable water. |
|
|
|
| Tightening torque |
|
9 Kg / m |
|
|
|
Lugs are available in Standard type and in Continental type.
Studs have a coating with special material or PTFE TEFLON so as galling is prevented during nuts clamping.
All metal parts after welding are subjected to pickling and passivation process for restoring corrosion resistance.
|
|
|
|
|
| AVAILABLE SIZES |
| For pipe OD 48 mm up to pipe OD 254 mm. |
|
| WORKING RANGE ** |
| 7-11 mm. |
|
| CLAMP LENGTH (mm) ** |
| 150, 200, 210, 250, 300, 400. |
|
* MATERIAL AISI 316 ON REQUEST.
** OTHER CLAMP WORKING RANGES AND CLAMP LENGTHS ARE MANUFACTURED ON SPECIAL DEMAND. |
|
|
