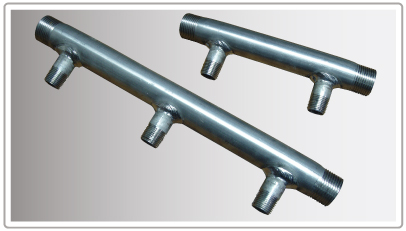

| STAINLESS STEEL WATER METER COLLECTORS |
 |
 |
|
| Use |
|
For the installation of multiple water meter supplies with the use of one water supply pipe.
|
|
|
|
|
| General Characteristics |
|
|
|
|
| Material of manufacture |
|
Stainless steel AISI 304. |
|
|
|
| Collector cross-section |
|
1'' or 2''. |
|
|
|
|
| Operating pressure |
|
16 bar. |
|
|
|
|
| Test pressure |
|
20 bar |
|
|
|
|
| |
| 1'' STAINLESS STEEL WATER METER COLLECTOR WITH TWO OUTLETS |
|
|
|
|
| Number of inlets |
|
Two. |
|
|
|
| Inlet thread type |
|
Male 1'' according to ISO 228/1. |
|
|
|
| Number of outlets |
|
Two. |
|
|
|
| Outlet thread type |
|
Male ˝ '' according to ISO 228/1. |
|
|
|
| Distance bewteen outlets |
|
140 mm. |
|
|
|
| Distance between inlet edge and outlet |
|
40 mm |
|
|
|
| Collector total length |
|
220 mm |
|
|
|
| |
1'' STAINLESS STEEL WATER METER COLLECTOR
WITH THREE OUTLETS |
|
|
|
| Number of inlets |
|
Two. |
|
|
|
| Inlet thread type |
|
Male 1'' according to ISO 228/1. |
|
|
|
| Number of outlets |
|
Three. |
|
|
|
| Outlet thread type |
|
Male ˝ '' according to ISO 228/1. |
|
|
|
| Distance bewteen outlets |
|
140 mm |
|
|
|
| Distance between inlet edge and outlet |
|
40 mm |
|
|
|
| Collector total length |
|
360 mm |
|
|
|
| |
| 1'' STAINLESS STEEL WATER METER COLLECTOR WITH FOUR OUTLETS |
|
|
|
|
| Number of inlets |
|
Two. |
|
|
|
| Inlet thread type |
|
Male 1'' according to ISO 228/1. |
|
|
|
| Number of outlets |
|
Four. |
|
|
|
| Outlet thread type |
|
Male ˝ '' according to ISO 228/1. |
|
|
|
| Distance bewteen outlets |
|
140 mm |
|
|
|
| Distance between inlet edge and outlet |
|
40 mm |
|
|
|
| Collector total length |
|
500 mm |
|
|
|
| |
| 2'' STAINLESS STEEL WATER METER COLLECTOR WITH FIVE OUTLETS |
|
|
|
| Number of inlets |
|
Two. |
|
|
|
| Inlet thread type |
|
Male 2'' according to ISO 228/1. |
|
|
|
| Number of outlets |
|
Five. |
|
|
|
| Outle thread type |
|
Male ˝ '' according to ISO 228/1. |
|
|
|
| Distance bewteen outlets |
|
140 mm. |
|
|
|
| Distance between inlet edge and outlet |
|
40 mm |
|
|
|
| Collector total length |
|
640 mm |
|
|
|
| |
| 2'' STAINLESS STEEL WATER METER COLLECTOR WITH TEN OUTLETS |
|
|
|
|
| Number of inlets |
|
Two. |
|
|
|
| Inlet thread type |
|
Male 2'' according to ISO 228/1. |
|
|
|
| Number of outlets |
|
Ten. |
|
|
|
| Outle thread type |
|
Male ˝ '' according to ISO 228/1. |
|
|
|
| Distance bewteen outlets |
|
140 mm |
|
|
|
| Distance between inlet edge and outlet |
|
40 mm |
|
|
|
| Collector total length |
|
1340 mm |
|
|
|
| |
2'' STAINLESS STEEL WATER METER COLLECTOR
WITH TWENTY OUTLETS |
|
|
|
| Number of inlets |
|
Two. |
|
|
|
| Inlet thread type |
|
Male 2'' according to ISO 228/1. |
|
|
|
| Number of outlets |
|
Twenty. |
|
|
|
| Outle thread type |
|
Male ˝ '' according to ISO 228/1. |
|
|
|
| Distance bewteen outlets |
|
140 mm |
|
|
|
| Distance between inlet edge and outlet |
|
40 mm |
|
|
|
| Collector total length |
|
2740 mm |
|
|
|
| Collectors have protective plastic taps in inlets and outlets |
|
|
´´
