| Use |
|
For permanent hot tap on water supply pipes except from PE pipes. |
|
|
|
| Material of manufacture |
|
Made of cast iron GG25. |
|
| Body |
|
|
|
|
|
|
| Clamping Belts |
|
The belts are made of stainless steel AISI 304 with dimensions, width 40 mm, thickness 1,25 mm and a length depending on the dimensions of DN. 1'' Saddles bear one clamping belt and 2'' saddless bear two clamping belts.The belts have on their edge suitable recess for bolts welding. The belts have internally a PVC insert for more even distribution of clamping forces. |
|
|
|
|
| M12 bolts, M12 nuts, M12 washers |
|
Stainless steel AISI 304 DIN 17440 GRADE 1.4301. The studs have a special coating of solid lubricant so as galling is prevented during nuts clamping. |
|
|
|
|
| Sealing Rubber Gasket |
|
EPDM suitable for use in potable water. |
|
|
|
|
| Surfarce paint |
|
Blue colour FUSION BOND EPOXY paint with thickness 150 ėm suitable and certified for use in potable water. |
|
|
|
|
| Operating pressure |
|
16 bar. |
|
|
|
|

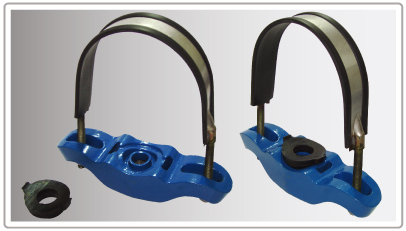

CAST IRON TAPPING SADDLE WITH THREAD 1´´
AVAILABLE SIZES |
| |
| CAST IRON TAPPING SADDLE WITH THREAD 1´´ |
| SADDLE TYPE |
BOLTS |
Φ 75 - 105 |
2 pieces M12X115 |
Φ 80 - 120 |
2 pieces M12X115 |
Φ 90 - 120 |
2 pieces M12X115 |
Φ 120 - 150 |
2 pieces M12X115 |
Φ 150 - 190 |
2 pieces M12X125 |
Φ 160 - 200 |
2 pieces M12X125 |
Φ 180 - 220 |
2 pieces M12X140 |
Φ 200 - 240 |
2 pieces M12X140 |
Φ 220 - 260 |
2 pieces M12X140 |
Φ 280 - 320 |
2 pieces M12X140 |
|
|
